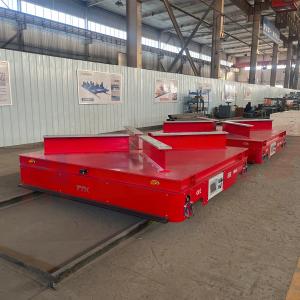

5T Coil Transfer Cart Factory Material Transport Coils And Rolls

5T Coil Transfer Cart factory material transport coils and rolls

^{Coil transfer cart is a specialized piece of equipment designed to
transport coils and rolls safely and efficiently. coil transfer
cart is a specialized piece of material handling equipment used in
various industries, such as steel mills, manufacturing plants, and
warehouses. Its primary function is to safely and efficiently
transport heavy, large, or bulky coil materials, such as steel or
aluminum coils, from one location to another within a facility.
These carts are designed to handle high loads and provide a
reliable means of transferring materials while reducing the risk of
damage and minimizing the need for manual labor. Types of Steel
Coil Transfer CartsCoil transfer carts come in various types,
including V-decks, flat decks, and transfer carts with adjustable
decks. V-decks are designed to accommodate cylindrical loads such
as steel coils and rolls. Flat decks are suitable for carrying
rectangular loads such as pallets and boxes. Transfer carts with
adjustable decks can accommodate both cylindrical and rectangular
loads. The type of transfer cart you need will depend on the shape
and size of your load.}

^{Technical parameters for Battery powered electric transfer carts KPX series}
^Model		^KPX-2t	^KPX-5t	^KPX-10t	^KPX-20t	^KPX-25t	^KPX-30t	^KPX-40t	^KPX-50t	^KPX-150t
^{Rated Load(t)}		²	⁵	¹⁰	²⁰	²⁵	³⁰	⁴⁰	⁵⁰	¹⁵⁰
^{Table Size(mm)}	^Length	²⁰⁰⁰	³⁵⁰⁰	³⁶⁰⁰	⁴⁰⁰⁰	⁴⁵⁰⁰	⁴⁵⁰⁰	⁵⁰⁰⁰	⁵⁵⁰⁰	¹⁰⁰⁰⁰
	^Width	¹⁵⁰⁰	²⁰⁰⁰	²⁰⁰⁰	²²⁰⁰	²²⁰⁰	²²⁰⁰	²⁵⁰⁰	²⁵⁰⁰	³⁰⁰⁰
	^Height	⁴⁵⁰	⁵⁰⁰	⁵⁰⁰	⁵⁵⁰	⁶⁰⁰	⁶⁰⁰	⁶⁵⁰	⁶⁵⁰	¹²⁰⁰
^{Wheel Base(mm)}		¹²⁰⁰	²⁵⁰⁰	²⁶⁰⁰	²⁸⁰⁰	³²⁰⁰	³²⁰⁰	³⁸⁰⁰	⁴²⁰⁰	⁷⁰⁰⁰
^{Rail Inner Gauge(mm)}		¹²⁰⁰	¹⁴³⁵	¹⁴³⁵	¹⁴³⁵	¹⁴³⁵	¹⁴³⁵	¹⁴³⁵	¹⁴³⁵	²⁰⁰⁰
^{Wheel Diameter(mm)}		^Ø270	^Ø300	^Ø300	^Ø350	^Ø400	^Ø400	^Ø500	^Ø500	^Ø600
^{Wheel Quantity}		⁴	⁴	⁴	⁴	⁴	⁴	⁴	⁴	⁸
^{Ground Clearance(mm)}		⁵⁰	⁵⁰	⁵⁰	⁵⁰	⁵⁰	⁵⁰	⁵⁰	⁵⁰	⁷⁵
^{Running Speed(m/min)}		^0-25	^0-25	^0-25	^0-20	^0-20	^0-20	^0-20	^0-20	^0-18
^{Motor Power (Kw)}		¹	^1.2	^1.6	^2.2	³	^3.5	⁴	⁵	¹⁵
^{Battery Capacity (Ah)}		¹⁸⁰	¹⁸⁰	¹⁸⁰	¹⁸⁰	²⁵⁰	²⁵⁰	³⁰⁰	³³⁰	⁶⁰⁰
^{Battery Voltage(V)}		²⁴	³⁶	⁴⁸	⁴⁸	⁴⁸	⁴⁸	⁴⁸	⁴⁸	⁷²
^{Running Time When Full Load}		^4.32	^5.4	^4.8	⁴	⁴	^3.5	^3.6	^3.3	^2.9
^{Running Distance for One Charge (Km)}		^6.5	^8.1	^7.2	^4.8	^4.8	^4.2	^4.3	⁴	^3.2
^{Max Wheel Load (KN)}		^14.4	^25.8	^42.6	^77.7	^94.5	^110.4	^142.8	¹⁷⁴	²⁶⁶
^{Reference Weight(t)}		^2.8	^3.6	^4.2	^5.9	^6.5	^6.8	^7.6	⁸	²⁷

^{In addition to energy conservation, we have also made a lot of
efforts in the functional development of electric rail flat cars.
Hydraulic lifting, self unloading, special workpiece support,
turning, ferry, roller support, etc. We are trying to infiltrate
from various working conditions, environmental characteristics and
required functions, develop transport tools suitable for various
factories, and promote products that have been gradually replacing
the market's environment-friendly transport tools.}

^{The flat car is of beam type structure with flat platform. V-shaped
frame can also be added according to customer needs. The V-shaped
frame can be flexibly disassembled to meet the function of multiple
use of one car, so as to minimize the cost. It has no requirements
for track insulation, convenient auxiliary rails, low cost, and
simple operation. It can operate indoor and outdoor for a long
distance. It is very convenient for transportation to the plant and
plane layout. It greatly increases the scope of work.}
