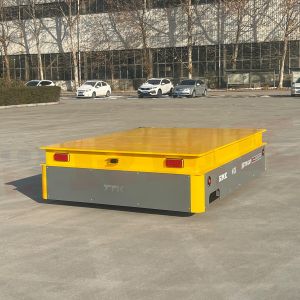

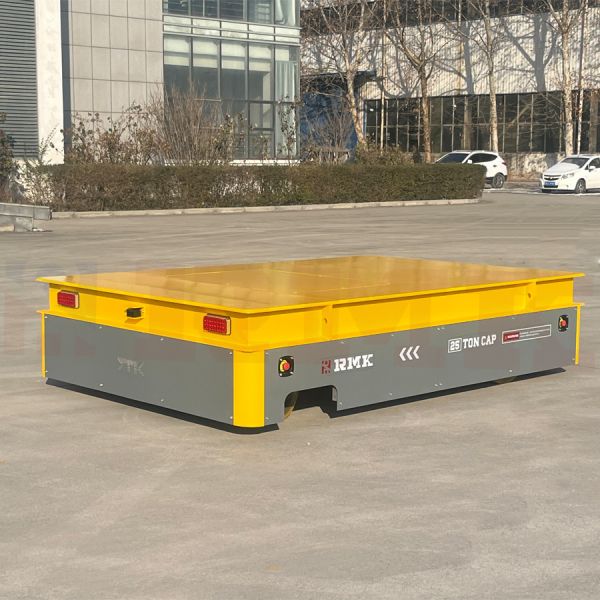

25T accumulator Powered polyurethane wheels Trackless transfer cart
25T accumulator Powered polyurethane wheels Trackless transfer
cart.Trackless transfer cart is an accumulator powered product. It
use polyurethane wheels which can walk on the hardened ground of
the handling equipment. The accumulator can run for 3 hours on a
single charge. The transfer carts can be in situ rotate 360°. This
equipment does not have to lay track. It has the advantages of
simple operation, high transport efficiency, flexible steering and
walking. With the development of transportation industry, trackless
transfer cart will be widely used in the occasion of material
handling.
Operating on hardened ground without obstacles.
Intelligent charging, automatic alarm after charging
Sound and light alarm lights, turn signals, power indicator.
Stop automatically when pedestrian or obstacle is detected.
The structural parts are made of Q235B rolled steel plate, 1.5
times load design and 1.25 times load test.
Emergency stop button.
With conventional electrical protection: over current, over
voltage, under voltage, short circuit, overheating, grounding,
leakage and other protective devices.
Automatic tracking, automatic parking.
| Technical parameters for Battery powered electric transfer carts |
| Model | RWP-2t | RWP-5t | RWP-10t | RWP-20t | RWP-25t | RWP-30t | RWP-40t | RWP-50t | RWP-150t |
| Rated Load(T) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | L | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| W | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| H | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
1.Load capacity, table size and rail gauge can be customized;
2.Options: Remote radio control (imported or made in china);
3.Automatic stop when detecting obstacle or person ,limit switches
(to limit travel);
4.Battery type (Free of maintenance Battery, Lithium battery,
Explosion-proof battery, and Anti-high temperature battery); |
