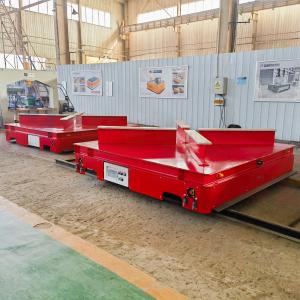

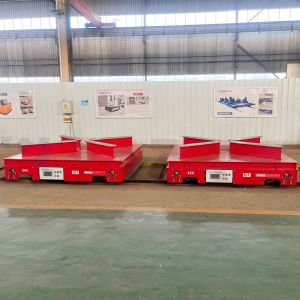

Automated RGV Rail Transfer Carts Heavy Die Transfer Trailers
REMARKABLE Material Handling offers a wide range of Die Handling
Products specifically designed for the unique needs of both
stamping and molding and transporting heavy die or mold from die
storage to the press line.
The automation of this rgv rail transfer cart advantages:
– faster transport times, thus saving man-hours;
– the elimination of human error in the alignment of tracks, which
may lead to problems when loading the materails;
– improved safety during movement thanks to the certified safety
components installed on-board the machine, which minimise the risk
of damage to property or persons by the automatic transfer cart
RGV;
– possibility for complete process automation.China Foundry Parts
Mold Die Rail Transfer Cart With Limited Switch
Transfer carts are used: to carry loads along assembly lines;
transfer material from one work station to the next; store and
transport an entire shift worth of production. They can even be
used as a stable yet moveable machine base. we have the solution
you need and each style can be designed for your specific
application.
REMARKABLE heavy die transfer trailers are operating in many
shipping lines, stevedores, concrete manufacturers, foundries,
steel mills, etc. We have supplied Hybrid Transfer Cart in the
world for moving molds inside and outside the plant by electric
traction and driving long distances.And also Heavy Load Transfer
Carts are mainly used to solve manoeuvrability problems in tight
spaces. Due to all possible steering programs, on either one or
different axles, you can achieve tight turning radious. The
propulsion can be either electric for in-plant load Carts or
batteries for long distances.
| Technical parameters for Battery powered electric transfer carts
KPX series |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | 270 | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 |
1,Load capacity, table size and rail gauge can be customized;
2,Options: Remote radio control (imported or made in china);
3,Automatic stop when detecting obstacle or person ,limit switches
(to limit travel);
4,Battery type (Free of maintenance Battery, Lithium battery,
Explosion-proof battery, and Anti-high temperature battery);
5,Motor (DC motor with brush and DC motor brushless);
6,Electrical parts (imported or made in China). |
