70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart

Henan Remarkable Intelligent Technology Co., Ltd
Contact Now
    Buy cheap 70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart from wholesalers

    Buy cheap 70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart from wholesalers
    • Buy cheap 70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart from wholesalers
    • Buy cheap 70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart from wholesalers
    • Buy cheap 70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart from wholesalers
    • Buy cheap 70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart from wholesalers

    70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart

    Ask Lasest Price
    Brand Name : Remarkabl
    Model Number : RWP/KPX/RGV/AGV
    Certification : ISO9001,ISO14001,ISO45001,CE
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets/year
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    70 Tons Trackless Transfer Cart Omnidirectional Material Handling Cart

    70 Tons Trackless Material Handling Cart

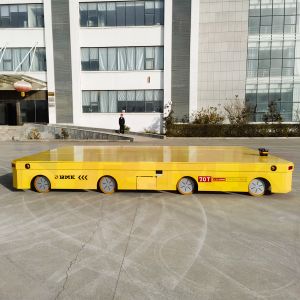

    70 tons trackless material handling cart customized for an Gear reducer manufacturing company, is equipped with guardrails and automatic obstacle avoidance devices on the basis of omnidirectional mobile trackless transfer carts, which are used to transport finished products of production materials and equipment such as mold,steel structural, pipes,etc.. It can shuttle between the inside and outside of the workshop and all corners. It is very flexible and convenient, greatly improving their production and transportation efficiency.

    Features

    Highly Maneuverable

    Zero turning radius, working space is only restricted by its external dimensions

    Precision Positioning

    Position adjustment in all directions, accurate to 1mm

    Strong Adaptability

    Adaptable to all kinds of surfaces like asphalt, concrete, self-leveling road

    Efficient and Environmental-friendly

    All-electric drive, noise-free operation, easy to maintenance

    Sound& light alarm, buffer, dead man stop, E-stop, etc, some safe devices are installed on the steerable transfer car to promise that the trackless handling cart work safely.

    Intelligent charger to prolong the battery life.

    Low power alarm device


    Technical parameters for trackless electric transfer carts
    rated load(t)5101520304050150
    impacted rated load(t)7.51522.530456075225
    structure of framesteel plates welded, beam structure
    max. wheel load(t)2.84.34.85.67.7101227
    ground requirementcement floorsteel plate ground
    table size(mm)3000×20003600×20004000×22004500×22005000×22005500×23006000×230010000×3000
    height of the whole cart(mm)4505306006006507007001200
    ground clearance(mm)5075
    wheels base(mm)1500170018002000
    axles distance(mm)250031003400390043004800520010000
    turning radius(mm)250131013401390143014801520110001
    turning typeturning while driving with no stop
    control method for turningcontrol button
    turning structuremechanical
    motor power(Kw)3.556710121515
    wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
    wheel materialZG55+hydropur ture
    running speed(m/min)0-150-12
    brake principleelectric magnetic brake
    operation methodwith wire or no wire
    battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
    battery maintenancefree of maintenance
    charger's installationinstalled on cartsplit-type
    charger functionautomatic charging
    radar control3-0.3m, automatic stop for obstacles
    warning equipmentsound and light
    other functionsturning light, night light and power display
