Automatic Rail Transfer Cart For Efficient Material Transfer Coils
Production Apply Transfer Carts

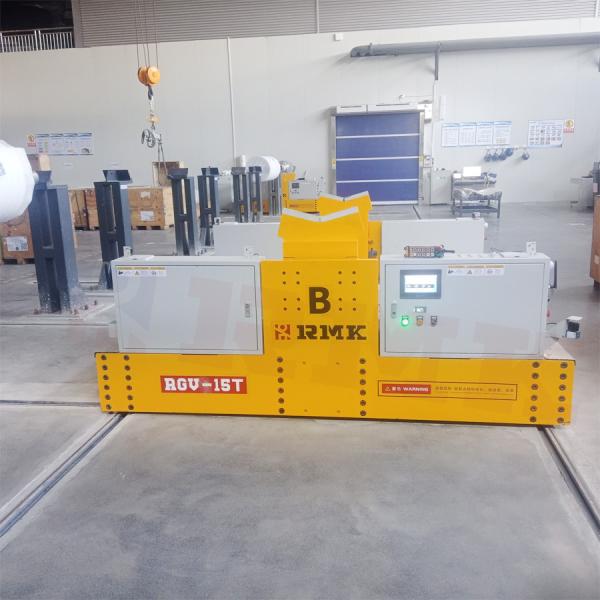

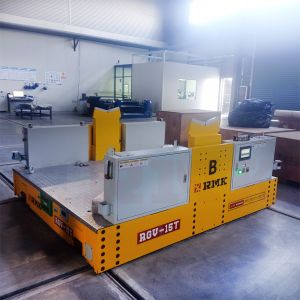

REMARKABLE Coil transfer Cart are used to transport steel coils and
pipes for metal industry. This coil transport carts are designed to
be an extremely cost effective, safe and flexible load moving
alternative.
The Transfer Carts are manual guide vehicles equipped with
specialized drive systems which make it possible to easily,
precisely and safely move up to 1000 tons. Coil transfer cart is
very popular with the customers from metallurgy industry.For the
kind of cart, the customers care the following problems:
1.coil quantity they can put on the cart, coils safety in the
transportation, coil cart table deformation, coil car cost etc.
2.Coil quantity on one cart,we manufactured one coil, two coils,
even five coils holder on cart according to coil dimension and
placing position to meet the customer demand.
The Battery powered coil transfer cart is applied in metal industry
factory to transfer large dimension steel plate, steel structure.
The transport cart is remote control, it is convenient to operate.
Coil transfer carts also can be used in the high-temperature
environment. The hydraulic lifting device can be installed on the
flat carts. The dc motor has the advantages of safety, flexibility,
stable start, big starting torque, small impact to the gear
reducer, low voltage, long lifetime and so on. But this series have
strict requirement on the construction of the railways which need
to be insulated.
For coil car cost, according to using time and demand, we will
recommend the most suitable cart on base of customer cost consider.
Applicable sites of coil transport cart
| Technical parameters for Battery powered electric transfer carts
KPX series |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | 270 | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 |
1,Load capacity, table size and rail gauge can be customized;
2,Options: Remote radio control (imported or made in china);
3,Automatic stop when detecting obstacle or person ,limit switches
(to limit travel);
4,Battery type (Free of maintenance Battery, Lithium battery,
Explosion-proof battery, and Anti-high temperature battery);
5,Motor (DC motor with brush and DC motor brushless);
6,Electrical parts (imported or made in China). |
