Automatic Rail Transfer Cart For Material Transfer In Various
Fields And Industries Coil Material Transfer Trolley

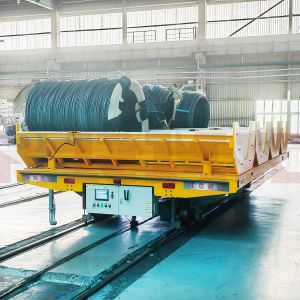

The Coil Material transfer trolley is an essential tool for any
industry dealing with heavy loads. It is designed to carry coils of
different sizes and weights safely and efficiently from one
location to another. This invaluable tool not only saves time but
also reduces the risk of accidents and damage to the coils.
The steel coil transfer trolley and electric turntable are used for
the transportation of metal materials such as steel coils and
aluminum coils, as well as other casting and equipment production
workshops.
Coil Material transfer trolley Advantages
The coil transfer trolley is its ability to easily move heavy loads
from one location to another. The trolley's sturdy construction
makes it capable of bearing a great deal of weight, making it ideal
for transporting heavy coils. This not only saves time but also
enables workers to move these loads safely and efficiently.
Another the coil rail transfer trolley is that it prevents damage
to the coils during transport. With its secure design, the coils
are kept in place during movement, reducing the risk of accidents
or damage. Additionally, the trolley's smooth ride ensures that the
coils remain in good condition throughout the journey.
Overall, the coil Material transfer trolley is an essential tool
for any industry that needs to move heavy loads. With its safe and
efficient design, it saves time, reduces the risk of accidents, and
prevents damage to critical equipment. So, whether you're
transporting steel, aluminum, or other materials, the coil rail
transfer trolley is an ideal solution for your needs.
| Technical parameters for Battery powered electric transfer carts
KPX series |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | 270 | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 |
1,Load capacity, table size and rail gauge can be customized;
2,Options: Remote radio control (imported or made in china);
3,Automatic stop when detecting obstacle or person ,limit switches
(to limit travel);
4,Battery type (Free of maintenance Battery, Lithium battery,
Explosion-proof battery, and Anti-high temperature battery);
5,Motor (DC motor with brush and DC motor brushless);
6,Electrical parts (imported or made in China). |
