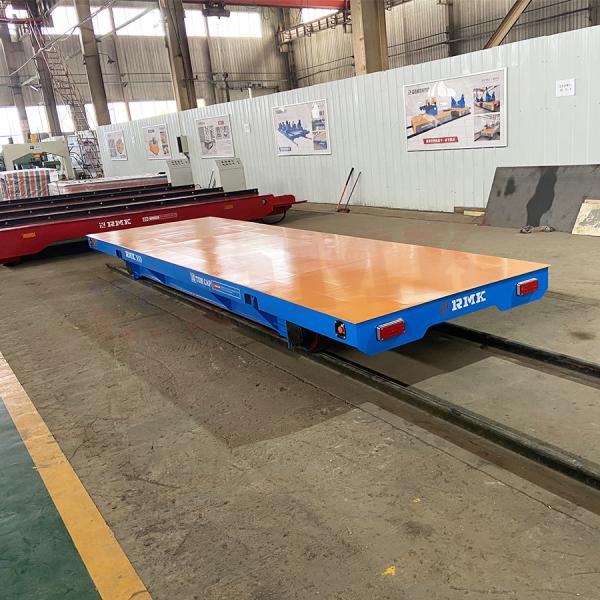

Industrial Workshop 10 Tons On-Rail Material Transport Platform
This Type Of 10 Tons On-Rail Material Transport Platform Can Move
Forward, Backward. It Is Equipped With Some Safety Devices, Such As
Alarm Light, Emergency Stop Button, Laser Scanner,Etc. The Car's
Load Capacity And Table Size, Power Supply Mode Can Be Customized
According To Customer's Requirements.
Characters:
(1) This Battery-Powered Rail Transfer Car Is More Safe And
Flexible.
(2) It Has No Strict Requirement For The Construction Of The
Railway.
(3) No Limit Of Running Distance.
(4) Safe And Convenient Operation For There Is No Wire Outside The
Car.
Product Description:
1. KPX Rail Battery Flat Car Is Powered By The Storage Battery. I
2.Rail Transfer Trolley Has Many Characteristics, Such As Simple
Structure, Easy Operation, Carrying Capacity And So On. Besides, It
Can Be Used In Special Occasions Without Power And Transport For
Long Distance.
3.This Series Of Battery Transport Cart Can Be Widely Used In
Machinery Factories, Warehouses And Metallurgical Plants As A
Workshop Transport Or With The Crane Transport Heavy Loads Over
Cross.
4. This Kind Of Heavy Duty Electric Flat Car For Shipbuilding Is
Suitable To Be Used In The Long Running Distance Transportation And
Low Using Frequency.
| Technical parameters for electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| ground requirement | cement floor | steel plate ground |
|
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 | 10000×3000 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| ground clearance(mm) | 50 | 75 |
| wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-15 | 0-12 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| charger function | automatic charging |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
