    Hydraulic Lift Mould Transport Cart Precast Concrete 10T Transfer Platform

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP
    Certification : ISO9001,ISO14001,ISO45001,CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets per year
    Delivery Time : 40 days
    • Product Details
    • Company Profile

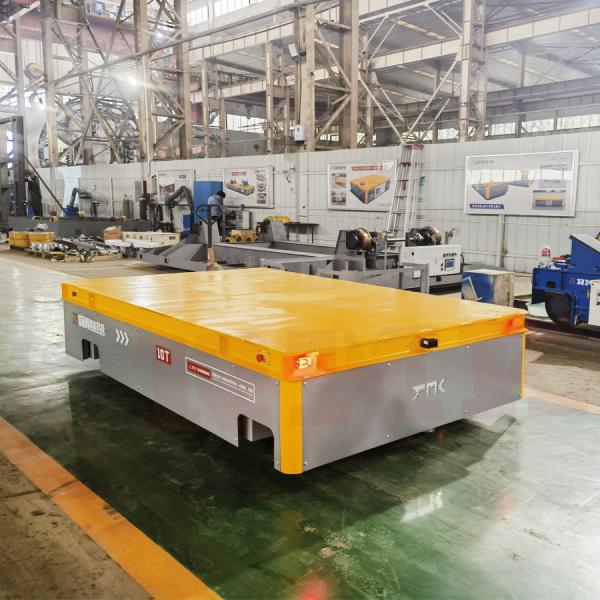

    Hydraulic Lift Mould Transport Cart Precast Concrete 10T Transfer Platform

    Hydraulic Lift Mould Transport Cart Precast Concrete 10T Transfer Platform


    10 Tons Hydraulic Lift Mould Transport Cart Is One Kind Of Transfer Equipment For Material Handling In The Workshop. It Is Equipped With Hydraulic Lifting Device To Lift Up And Down The Mould In The Workshop. This Kind Of Large Table Size And Heavy Load Transfer Trolley Adopts The Hydraulic Steering Device To Make The Cart Turning Freely And Meets Client's Small Space At Using Site.


    Load Capacity From 1 Ton To 100 Tons Working In Single Or In Compound Mode (With Or More Vehicles Electrically Synchronized).


    Our Electric Carts Can Move With Different Steering Systems (Steering On An Axle, Two Axes, 360º, 90º, Crab, Etc …). These Vehicles Are Operated With Remote Control (Wireless Or Wire Connected According To Customer Needs).


    Electric Transporters Can Adapt To Different Types Of Wheels Depending On The Floor Condition At Customer’s Site, For Which Henan Remarkable Advises And Suggests The Type Of Material To Be Used (Polyurethane, Vulkollan, Solid, Super Elastic Or Pneumatic).

    As Optional, We Can Include Different Lifting Systems (Through Cylindric Bars, Cylinders Or Is The Own Vehicle That Lifts Up The Load) To Take Placed On Pallets Or Steel Structures.


    >> Features:

    ◆ Easy Load And Unload
    ◆ Hydraulic Lift Device
    ◆ Safety Warning Light
    ◆ Laser Scanner


    The Battery Powered Transfer Carts Include The Following Advantages:

    Easy To Handle And Manipulate.

    Different Steering Modes.

    Low Maintenance Required.

    Robust Sturdy Frame.

    Do Not Pollute The Environment.

    Safety And Security Systems To Avoid Possible Accidents.

    24 Hours Remote Technical Assistance.

    Well Known Components Brand.

    Technical parameters for trackless electric transfer carts
    rated load(t)5101520304050150
    impacted rated load(t)7.51522.530456075225
    structure of framesteel plates welded, beam structure
    max. wheel load(t)2.84.34.85.67.7101227
    ground requirementcement floorsteel plate ground
    table size(mm)3000×20003600×20004000×22004500×22005000×22005500×23006000×230010000×3000
    height of the whole cart(mm)4505306006006507007001200
    ground clearance(mm)5075
    wheels base(mm)1500170018002000
    axles distance(mm)250031003400390043004800520010000
    turning radius(mm)250131013401390143014801520110001
    turning typeturning while driving with no stop
    control method for turningcontrol button
    turning structuremechanical
    motor power(Kw)3.556710121515
    wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
    wheel materialZG55+hydropur ture
    running speed(m/min)0-150-12
    brake principleelectric magnetic brake
    operation methodwith wire or no wire
    battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
    battery maintenancefree of maintenance
    charger's installationinstalled on cartsplit-type
    charger functionautomatic charging
    radar control3-0.3m, automatic stop for obstacles
    warning equipmentsound and light
    other functionsturning light, night light and power display
