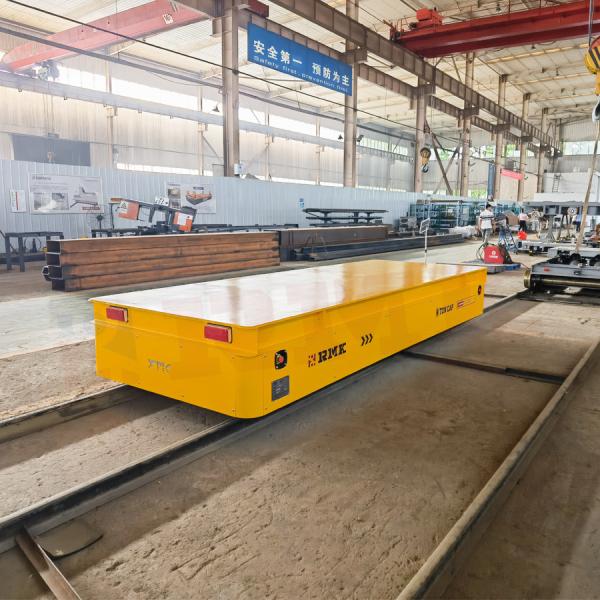

50 Tons heavy industry Transformer maintenance transport platform
the rail car produced by our company can be used in the transformer
maintenance workshop to cooperate with the crane to overhaul the
transformer.
The running route of the Transformer transport platform is fixed,
which can be used as the operating table. The workers will place
the transformer to be repaired on the Transformer transport
platform, and then repair and maintain it according to the process.
Compared with the traditional fixed operation platform, the
Transformer transport platform is more convenient as the operation
platform, which greatly improves the work efficiency and saves
manpower and material resources.
| Technical parameters for Battery powered electric transfer carts
KPX series |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 |
All of our transfer cart can customized by your needs. we can add
coaming, lifting system,V type rack and so on .
Transformer transport platform RGV is a transport vehicle in
contact with the ground guide track. The Transformer transport
platform RGV system used by our company consists of several
trolleys, a single PLC control unit and a central PLC It is
composed of control system, track system and sliding contact line
power supply system. The side of the ring track of RGV is provided
with a trench along the ring line, and the sliding contact line
power supply system is installed on The lower part of the track
system is connected with the traveling trolley through the
collector.
The simplicity of the overall structure is also reflected in the
simplification of the control function: Transformer transport
platform RGV runs on the ground track, through the collector and
the trench at the bottom of the trolley
The sliding contact line in the contacts with the main control
cabinet for signal transmission. Judge whether there is a trolley
in each section of the sliding contact line through the sections of
the sliding contact line, and determine the small
The location of the car. In the process section, the trolley runs
at a speed synchronized with the main line. The main control
cabinet is equivalent to the dispatching console and the position
of each trolley
Will let it identify, and then issue work orders to it according to
the designed program.
