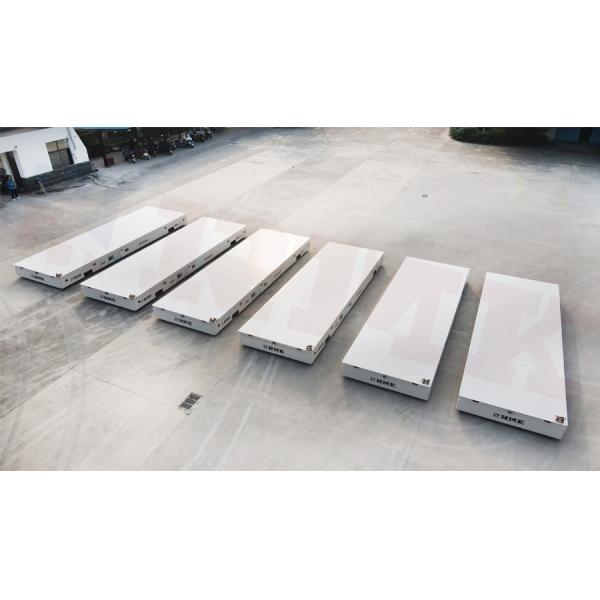

35 Tons trackless electric transport platform realize intelligent
handling
Recently, the most popular car is the trackless electric transport
platform
The main advantages of ttrackless electric transport platform are
as follows:
1. 360-degree rotation without dead angle can realize intelligent
handling;
2. Battery/lithium battery power supply effectively avoids the
restriction of running distance;
3. Fast charging speed, equipped with efficient and fast charging
cabinet, can be fully charged in only 3-5 hours.
4. Heavy load, the vehicle weight of the battery electric flat
plate is up to 500 tons, which solves the problem of handling heavy
materials with large tonnage;
5. Long battery life, large capacity battery, replaceable battery
at any time, to ensure all-day work;
6. It is easy to operate, and can realize the handling operation of
flat cars only by remote control, which requires low technical
ability of employees and effectively reduces labor costs; It can be
controlled remotely, especially the automation system can realize
unmanned intelligent long-distance operation.
7. It is widely used in metallurgy, casting, construction, mold
processing, container and other industries;
8. The box girder frame structure increases the safety bearing
coefficient and greatly reduces the frame deformation;
| RWP Technical parameters for electric transfer carts |
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure |
| 5 | ground requirement | cement floor | steel plate ground |
| | | |
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 | 10000×3000 |
| 8 | ground clearance(mm) | 0-100 | 75 |
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop |
| 13 | control method for turning | control button |
| 14 | turning structure | mechanical |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| 22 | battery maintenance | free of maintenance |
| 23 | charger's installation | installed on cart | split-type |
| 24 | charger function | automatic charging |
| 26 | warning equipment | sound and light |
| 27 | other functions | power display |
Trackless material transport platform is also known as "no track
flat car, no track electric flat car, handling over the straddle
car", which belongs to a special type of electric flat car. The
trackless electric flat car is a kind of model that develops
rapidly in recent years. Its appearance solves the problem that the
small radius of the track flat car can not turn, and expands the
range of use of the electric flat car.
The commonly used track electric flat car, although the load is
large, the ground damage is small, but is subject to the length of
the track, as well as the turning radius, the electric flat car can
only be used in a limited scope, and in accordance with the fixed
line of the track driving back and forth, the use of limitations,
so, more enterprises began to customize the driving can turn at
will in the trackless electric flat car.
