30 Tons ladle transporter platform methods for material
transportation
With the progress of mechanization, many factories no longer rely
on simple and cumbersome manual transportation for material
transportation, but choose more energy-efficient, environmentally
friendly, and safe methods for transportation.
High temperature materials, as they are high-temperature, also have
special requirements for transport vehicles. Firstly, the transport
vehicle needs to be equipped with high-temperature resistant
equipment, and secondly, the motor reducer and electrical system
must also be equipped with high-temperature resistant devices.

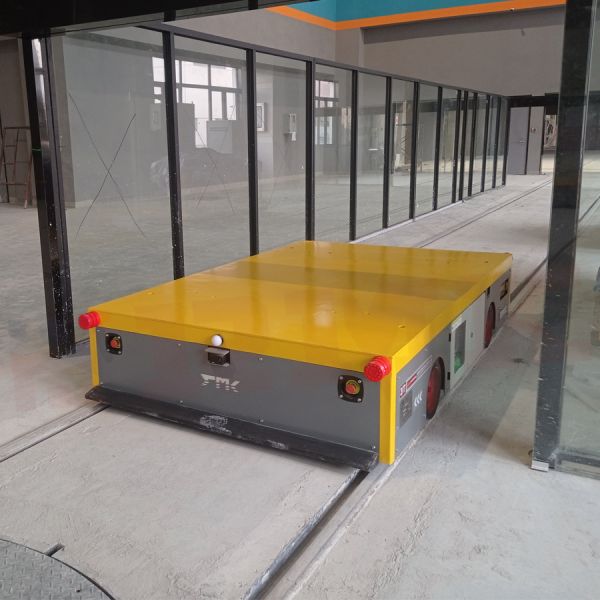

| Technical parameters for Battery powered electric transfer carts
KPX series |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 |
1. In terms of the choice of power supply mode, our electric rail
steel ladle car has many choices, such as low-voltage third rail,
reel cable power supply, towing cable power supply, sliding contact
line power supply, battery power supply, etc. The diversified rail
steel ladle car has added customers' options.
2. This type of high-temperature material transfer tool vehicle -
electric track steel wrapped car, with a box girder structure on
the frame, has the advantages of large load capacity, low
deformation, and beautiful appearance. And electric rail ladle cars
can carry 1 to 800 tons of goods. In the transportation equipment
of steel mills, whether it is for the transportation of
high-temperature steel ladle or waste slag, it can be said to be
professional equipment.
3. In addition to electric track flat cars that can be customized
according to customer needs, electrical appliances can also be
specified by customers. The company designs and manufactures
according to the needs of customers. Rail electric flat cars can be
equipped with hydraulic lifting systems, lifting devices, clamping
devices, V-shaped frames, U-shaped frames, and other devices. They
can also be designed as detachable and can achieve multi-purpose
functions for one car, thereby minimizing costs.
