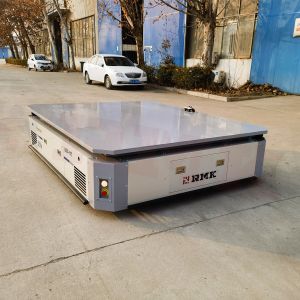

25 tons Pallet transport platform Automatic guide vehicle for
material handing
Pallet transport platform is a Pallet carrying equipment that can
carry goods. Pallet transport platform uses battery as power source
and motor as power, with labor-saving, high efficiency, smooth
operation of goods, simple operation, safe and reliable, low noise,
no pollution and so on. The Pallet transport platform uses a
48-volt battery, which greatly extends the use time after a single
charge. Haulers are widely used in logistics, warehouses, shopping
malls, workshops, schools, airports and so on. The Pallet transport
platform can meet the load requirement of 1-100 tons. Casters such
as polyurethane, nylon and rubber are used to meet the requirements
of various environments for handling tools.
| AGV Product Parameter |
| Model No. | AGV-10T | AGV-18T | AGV-30T | AGV-60T | AGV-100T | AGV-130T |
| Size(L)mm | 2400 | 3000 | 3800 | 5000 | 6000 | 8000 |
| Size(W)mm | 2000 | 2200 | 2200 | 2600 |
| Size(H)mm | 550 | 600 | 650 | 700 | | |
| Lifting/Jack-up hight(mm)(optional) | 100 | 150 | 200 |
| Lifting/Jack-up type(optional) | hydraulic type |
| Lifting platform(optional) | Scissor lift platform,Hydraulic lifting platform |
| Total weight(t) | 15 | 24 | 40 | 80 | 120 | 160 |
| Dead weight(t) | 3.5 | 5 | 7 | 11 | 16 | 23 |
| Loading capacity(t) | 10 | 18 | 30 | 60 | 100 | 130 |
| Charging mode | Automatic charging + manual charging |
| Battery type | Lead-acid battery/lithium battery | Automotive lithium battery |
| Continuous working time | 12h customized |
| Charging time | 10h Quick charging is optional |
| Charger | AC110V/AC220V/AC380V/AC480V |
| Driving unit(sets) | 4 | 4 | 4 | 4 | 6 | 8 |
| motor type | DC motor |
| Max.ground pressure | 6Mpa |
| No-load traveling speed | 0-0.5m/s |
| Full-load traveling speed | 0-0.3m/s |
| Full-load climbing speed | 0-0.2m/s |
| Speed Accuracy | ±3mm |
| Applicable ground | Hard ground, asphalt road, self-leveling road, concrete road, steel
floor |
| Rated Climbing Slope | 3° |
| Protect grade | IP54 |
| working environment | Temperature: -10~+45°C; humidity 0~100%, no condensation |
| Storage Conditions | Temperature: -15~+50°C; humidity 0~100%, no condensation |
| Operation method | Remote operation / automatic navigation /upper computer
communication command control |
| navigation method | Magnetic strip navigation / ribbon navigation / fluorescent ribbon
navigation / QR code navigation / inertial navigation / laser
navigation |
| Anti-collision device | Rubber protective strip anti-collision device / edge sensor
anti-collision device / laser radar anti-collision device |
Automated Guided vehicle (AGV) is a vehicle that does not require a
driver for industrial applications and is powered by rechargeable
batteries. Generally, its path and behavior can be controlled by a
computer, or its path can be set up by electromagnetic
path-following system. Electromagnetic tracks are glued to the
floor, and unmanned vehicles move and act according to the
information brought by the electromagnetic tracks.
In addition, there are such as: hydraulic support carrier (divided
into one vehicle and split vehicle, split vehicle is also known as
trailer type hydraulic support carrier)
