Heavy Load Transport Factory Moving Cart Omnidirectional Moves
Transfer Trolley

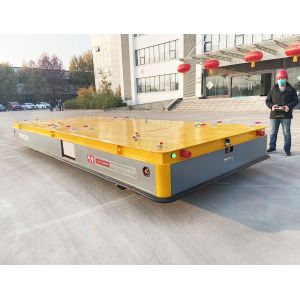

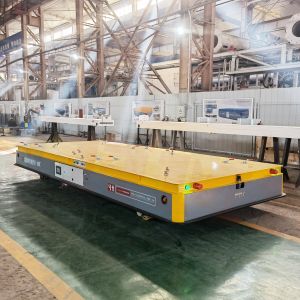

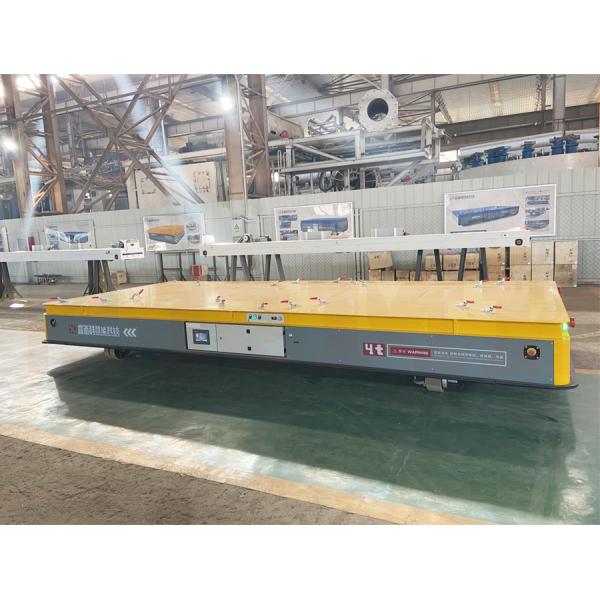

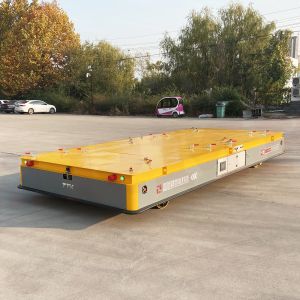

Omnidirectional moves transfer trolley is an automatic transfer
cart in Remarkable RWP trackless transfer cart series.
Omnidirectional moves transfer trolley is consisted of power
source, gear train, steel structure bearing frame, steering gear,
running gear, control system and fault diagnosis module. other
functions. It can turn around on the cement floor,It can move and
walk in all directions, angles, and directions, and can switch
between horizontal and vertical directions to achieve 360 degree
rotation in place.
All the automated trackless transfer cart are equipped with warning
alarm and security detection apparatus, and the alarm would ring
and the trackless transfer cart would stop immediately if there was
any obstacle or pedestrian in the running path of the automated
transfer cart. Also, we will provide intelligent automatic rapid
charger with the trackless transfer cart. Positioning fixture, lift
platform and other assistive device are optional to meet different
demands on various occasions. The PLC is also alternative if it’s
necessary.
1. Choosing the battery as the power source can make the cost lower
and easier.
2. Other auxiliary devices such as positioning devices, devices,
lifting platforms can also be installed according to user needs,
and PLC can be installed to achieve fully automated control.
3. It can be customized according to user needs such as frequency
conversion start, anti-rollover, lifting, wifi wireless
communication, scanning, fixed-point parking, waterproof treatment,
ultra-low table top, and climbing.
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| ground requirement | cement floor | steel plate ground |
|
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 | 10000×3000 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| ground clearance(mm) | 50 | 75 |
| wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-15 | 0-12 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| charger function | automatic charging |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
