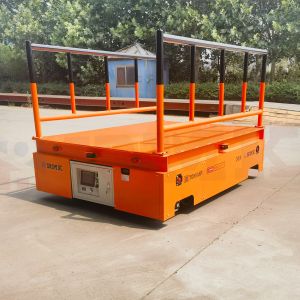

15 Tons Omni Mobile Steering Wheel Electric Transfer Cart

^{15 Tons omni electric transfer cart designed and produced by RMK is
exported to Thailand, with a table size of 2400 * 1800 and a table
height of 700. It is powered by batteries and has two control modes
on-board handle and wireless remote control. The transfer cart is
equipped with safety protection devices such as sound and light
warning lights, laser obstacle avoidance, and emergency stop
buttons.}

^{This cart is flexible in movement, capable of tilting, crossing,
and rotating in place, making it the preferred choice for modern
handling equipment.}

^{Technical parameters for trackless electric transfer carts}
^{rated load(t)}	⁵	¹⁰	¹⁵	²⁰	³⁰	⁴⁰	⁵⁰	¹⁵⁰
^{impacted rated load(t)}	^7.5	¹⁵	^22.5	³⁰	⁴⁵	⁶⁰	⁷⁵	²²⁵
^{structure of frame}	^{steel plates welded, beam structure}
^{max. wheel load(t)}	^2.8	^4.3	^4.8	^5.6	^7.7	¹⁰	¹²	²⁷
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{table size(mm)}	^3000×2000	^3600×2000	^4000×2200	^4500×2200	^5000×2200	^5500×2300	^6000×2300	^10000×3000
^{height of the whole cart(mm)}	⁴⁵⁰	⁵³⁰	⁶⁰⁰	⁶⁰⁰	⁶⁵⁰	⁷⁰⁰	⁷⁰⁰	¹²⁰⁰
^{ground clearance(mm)}	⁵⁰							⁷⁵
^{wheels base(mm)}	¹⁵⁰⁰		¹⁷⁰⁰			¹⁸⁰⁰		²⁰⁰⁰
^{axles distance(mm)}	²⁵⁰⁰	³¹⁰⁰	³⁴⁰⁰	³⁹⁰⁰	⁴³⁰⁰	⁴⁸⁰⁰	⁵²⁰⁰	¹⁰⁰⁰⁰
^{turning radius(mm)}	²⁵⁰¹	³¹⁰¹	³⁴⁰¹	³⁹⁰¹	⁴³⁰¹	⁴⁸⁰¹	⁵²⁰¹	¹⁰⁰⁰¹
^{turning type}	^{turning while driving with no stop}
^{control method for turning}	^{control button}
^{turning structure}	^mechanical
^{motor power(Kw)}	^3.5	⁵	⁶	⁷	¹⁰	¹²	¹⁵	¹⁵
^{wheel diameter(mm)}	^{Ф300 x 4}	^{Ф350 x 4}		^{Ф400 x 4}	^{Ф400 x 6}	^{Ф500 x 6}		^{Ф600 x 8}
^{wheel material}	^{ZG55+hydropur ture}
^{running speed(m/min)}	^0-15					^0-12
^{brake principle}	^{electric magnetic brake}
^{operation method}	^{with wire or no wire}
^{battery model}	^{D-250 x 24}	^{D-33 x 24}	^{D-400 x 24}	^{D-440 x 24}	^{D-250 x 36}	^{D-330 x 36}	^{D-440 x 36}	^{D-600 x 36}
^{battery maintenance}	^{free of maintenance}
^{charger's installation}	^{installed on cart}				^split-type
^{charger function}	^{automatic charging}
^{radar control}	^{3-0.3m, automatic stop for obstacles}
^{warning equipment}	^{sound and light}
^{other functions}	^{turning light, night light and power display}
