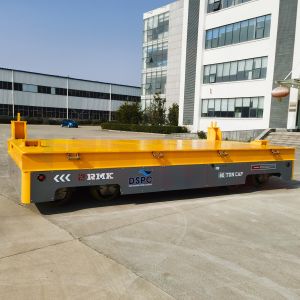

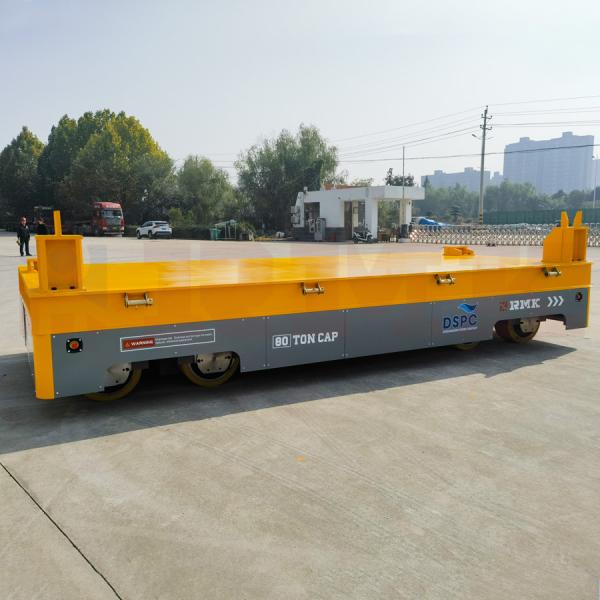

80 Tons Heavy-Duty Customized Tooling Trackless Transfer Cart
The RWP series trackless electric flatbed is an electric
transportation equipment operated by humans. This series of
products is a transport vehicle with safety protection and various
transfer functions, powered by lead-acid batteries or lithium
batteries. The cart adopts low-voltage AC motor speed control drive
technology, multi wheel hydraulic steering technology, and dual
operation modes of line control and remote control, enabling the
flat cart to achieve functions such as starting, stopping,
advancing, retreating, and turning. This series of flatcars has
high safety and maneuverability, with advantages such as smooth
operation, high precision, fast speed, high flexibility, large load
capacity, and high efficiency.
RWP-80T trackless electric flat car parameter table
Load capacity (t): 80T
Dimensions (mm): 6000 * 3000 (L * W)
Table height (mm): 1000
Operation mode: With cart handle control+wireless remote control
Safety measures: Sound and light warning lights+emergency stop
button+warning stickers
Other functions: battery display, overvoltage, undervoltage,
overcurrent protection
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| ground requirement | cement floor | steel plate ground |
|
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 | 10000×3000 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| ground clearance(mm) | 50 | 75 |
| wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-15 | 0-12 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| charger function | automatic charging |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
