| Brand Name : | Remarkabl |
| Model Number : | RWP/KPX/RGV/AGV |
| Certification : | ISO9001,ISO14001,ISO45001,CE |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 500 sets/year |
| Delivery Time : | 40 days |

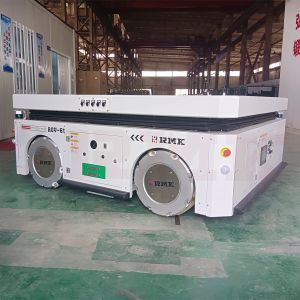

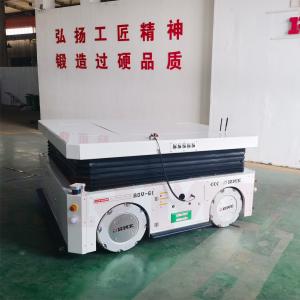

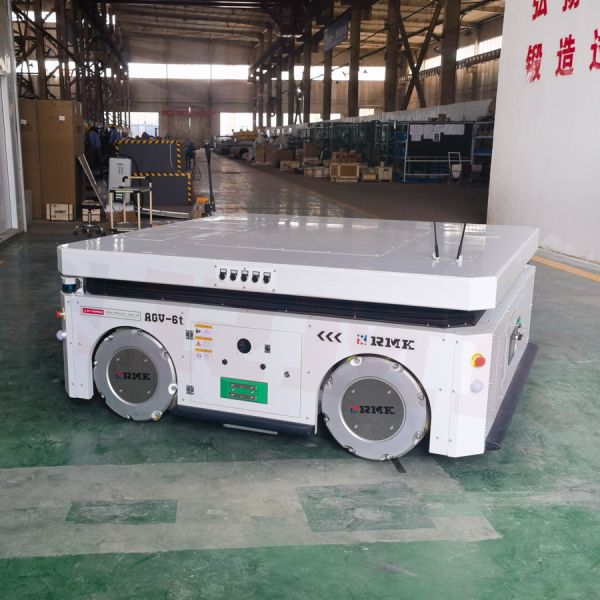

Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart
The Hybrid navigation AGV automated handling cart Omnidirectional Mobile Transfer Cart designed and produced by Remarkable is applied in the production and handling of the aerospace industry. This automated handling cart adopts magnetic navigation, laser navigation, and QR code navigation, which can be used alone or in combination with auxiliary navigation. It has strong adaptability to the production environment, high degree of automation, and is a very stable automated unmanned handling cart.




The Hybrid Navigation AGV Automated Handling Cart Omnidirectional
Mobile Transfer Cart is a revolutionary new piece of technology
that is set to transform the world of automated handling. With its
state-of-the-art hybrid navigation system, this cart is able to
navigate and operate in a wide range of environments, making it one
of the most versatile and adaptable carts on the market.
AGVAutomated Handling Cart
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |






|
