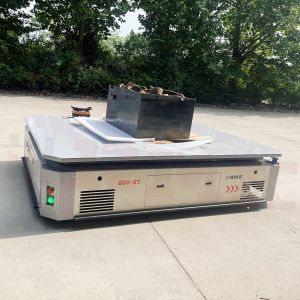

handling loads weighing Wheeled Movers trackless transfer cart
Customised Solving Wheeled Movers are ideal for handling loads
weighing from a few tons up to 150 tons or more. The Movers are
typically used in various industries for transporting heavy loads
such as aircraft, transformers or transformer parts, vehicles, and
containers.
We recommend that wheeled Movers are used when long distances are
to be travelled, there are variations in the floor and when clean
room conditions exist.
Receiving their power supply from onboard batteries, wheeled Movers
are suitable for more frequent transports over extended distances,
where high degrees of flexibility and manouevrability are
important. The omnidirectional Movers can be positioned precisely
and are in most cases controlled by a remote control unit allowing
only a single operator to move and supervise the movement. No fixed
installations in the floor are required, meaning that the Movers
are applicable whenever changes in the route must be made.
Solving wheeled Movers are typically fitted with self-levelling
axles ensuring that the wheels are always evenly loaded and in
contact with the floor. The Movers can be used on various floor
surfaces because variations in the floor are not so critical.
Solving wheeled Movers are suitable for transports over extended
distances.
Solving wheeled Movers are omnidirectional and can be positioned
precisely. Transport routes can easily be changed, since there is
no need for fixed installations.
Self-levelling axles ensure that the wheels are evenly loaded and
always in contact with the floor surface.
| Technical parameters for Battery powered electric transfer carts |
| Model | RWP-2t | RWP-5t | RWP-10t | RWP-20t | RWP-25t | RWP-30t | RWP-40t | RWP-50t | RWP-150t |
| Rated Load(T) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | L | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| W | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| H | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
1.Load capacity, table size and rail gauge can be customized;
2.Options: Remote radio control (imported or made in china);
3.Automatic stop when detecting obstacle or person ,limit switches
(to limit travel);
4.Battery type (Free of maintenance Battery, Lithium battery,
Explosion-proof battery, and Anti-high temperature battery); |
