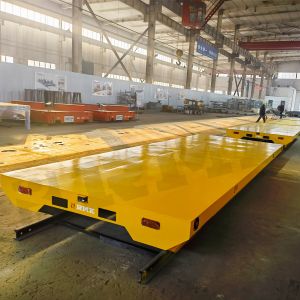

Heavy Load 5 Tons Transformer Battery Powered Rail Transfer Cart
Heavy Load 5 Tons Transformer Battery Powered Rail Transfer Cart Is
Designed To Move Along A Set Track System, Which Enables Them To
Transport Large Loads Without Any Hassle.The Battery Powered Rail
Car We Designed For Our Thai Clients Consists Of Main Components
Such As A Motor, Gearbox, Wheels, Battery, And Electronic Control
System. It Is Operated By A Remote Control And An Onboard Handle.
It Can Move Forward And Backward, And Can Also Customize A
Hydraulic Lifting System. It Can Also Be Designed As A Fully
Automated Rail Car RGV. This Type Of Vehicle Is Mainly Used For
Transporting Goods In Heavy Factories Such As Steel Mills And Mold
Factories.
The rail transfer cart is a transportation equipment used to
achieve longitudinal and transverse movement on the track. The
heavy duty rail transfer trolley is powered by batteries or
low-voltage tracks, it has the advantages of simple structure, easy
operation, and low cost, suitable for short distance material
handling, and can achieve smooth transportation on both vertical
and horizontal tracks. The following is its related introduction:
Main Parameters About Electric Rail Transfer Cart:
1.Load Capacity: 5Tons, Customized
2.Table Size: 5800*2000*500mm, Customized
3.Power Supply Mode: Maintenance-free lead-acid batteries
4.Operate Mode: Remote Control+ control panel
5.Speed: 0-20m/Min
6.Protective Measures: Alarm Light, Emergency Stop Button, Travel
Limit
7.Rail Model: P15
8.Paint Color: Yellow
9.Brake:Electromagnetic Brake
-Easy to operate: Generally equipped with wired controllers or
wireless remote controls, the operation interface is simple and
easy to get started. After simple training, operators can
proficiently operate, reducing the professional requirements for
operators.
-Good safety: The car is usually equipped with safety warning
devices, such as sound and light warning lights, which can
automatically start during operation to remind surrounding
personnel to pay attention; It is also equipped with human
detection devices, collision avoidance devices, etc., which can
automatically stop when encountering obstacles or pedestrians,
ensuring safe operation.
| Technical parameters for Battery powered electric transfer carts |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(T) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
1.Load capacity, table size and rail gauge can be customized;
2.Options: Remote radio control (imported or made in china);
3.Automatic stop when detecting obstacle or person ,limit switches
(to limit travel);
4.Battery type (Free of maintenance Battery, Lithium battery,
Explosion-proof battery, and Anti-high temperature battery);
|
